Oracel Net 서비스(Cont.)

Listener

# 서버 프로세스 조회
[oracle@ora19c ~]$ ps -ef | grep oracle
...
oracle   14758 14757  0 19:46 ?        00:00:00 oracleora19c (DESCRIPTION=(LOCAL=YES)(ADDRESS=(PROTOCOL=beq)))
oracle   14828     1  4 19:48 ?        00:00:00 oracleora19c (LOCAL=NO)

# 리스너 중지
[oracle@ora19c ~]$ lsnrctl stop

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 12-DEC-2025 09:47:33

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ora19c)(PORT=1521)))
The command completed successfully

# 클라이언트에서 접속 불가
C:\Users\itwill>sqlplus insa/insa@ora19c:1521/ora19c

SQL*Plus: Release 11.2.0.2.0 Production on 금 12월 12 09:50:29 2025

Copyright (c) 1982, 2014, Oracle.  All rights reserved.

ERROR:
ORA-12541: TNS:no listener

# 리스너 시작되었지만 db가 아직 등록되지 않음
[oracle@ora19c ~]$ lsnrctl start

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 12-DEC-2025 09:51:06

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Starting /u01/app/oracle/product/19.3.0/dbhome_1/bin/tnslsnr: please wait...

TNSLSNR for Linux: Version 19.0.0.0.0 - Production
System parameter file is /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
Log messages written to /u01/app/oracle/diag/tnslsnr/ora19c/listener/alert/log.xml
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ora19c)(PORT=1521)))
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ora19c)(PORT=1521)))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date                12-DEC-2025 09:51:06
Uptime                    0 days 0 hr. 0 min. 0 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
Listener Log File         /u01/app/oracle/diag/tnslsnr/ora19c/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ora19c)(PORT=1521)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
The listener supports no services
The command completed successfully

# 리스너가 등록되는데 오래 걸리기 때문에 클라이언트에서 바로 접속 불가
C:\Users\itwill>sqlplus insa/insa@ora19c:1521/ora19c

SQL*Plus: Release 11.2.0.2.0 Production on 금 12월 12 09:51:13 2025

Copyright (c) 1982, 2014, Oracle.  All rights reserved.

ERROR:
ORA-12514: TNS:listener does not currently know of service requested in connect
descriptor

# 리스너를 빠르게 등록
SYS@ora19c> alter system register;

[oracle@ora19c~]$ lsnrctl status

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 12-DEC-2025 19:52:07

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ora19c)(PORT=1521)))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date                12-DEC-2025 19:51:52
Uptime                    0 days 0 hr. 0 min. 14 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
Listener Log File         /u01/app/oracle/diag/tnslsnr/ora19c/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ora19c)(PORT=1521)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=ora19c)(PORT=5500))(Security=(my_wallet_directory=/u01/app/oracle/admin/ora19c/xdb_wallet))(Presentation=HTTP)(Session=RAW))
Services Summary...
Service "ora19c" has 1 instance(s).
  Instance "ora19c", status READY, has 1 handler(s) for this service...
Service "ora19cXDB" has 1 instance(s).
  Instance "ora19c", status READY, has 1 handler(s) for this service...
The command completed successfully

# 클라이언트 접속 가능
C:\Users\itwill>sqlplus insa/insa@ora19c:1521/ora19c

SQL*Plus: Release 11.2.0.2.0 Production on 금 12월 12 09:51:48 2025

Copyright (c) 1982, 2014, Oracle.  All rights reserved.

Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production

동적 서비스 등록(Dynamic Service Register)

오라클 8i 이상 버전의 오라클 데이터베이스 시작 시 자동으로 기본 리스너에게 데이터베이스 정보가 등록됨
11g(PMON), 12c(LREG)
기본 리스너에 추가로 데이터베이스 정보를 구성할 필요가 없음

# 리스너 파일에는 DB에 대한 정보가 없음
[oracle@ora19c ~]$ cat $ORACLE_HOME/network/admin/listener.ora
# listener.ora Network Configuration File: /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
# Generated by Oracle configuration tools.

LISTENER =
  (DESCRIPTION_LIST =
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = TCP)(HOST = ora19c)(PORT = 1521))
      (ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))
    )
  )

# 동적으로 DB 정보가 등록됨
[oracle@ora19c ~]$ lsnrctl status

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 12-DEC-2025 11:07:28

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ora19c)(PORT=1521)))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date                12-DEC-2025 09:51:06
Uptime                    0 days 1 hr. 16 min. 21 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
Listener Log File         /u01/app/oracle/diag/tnslsnr/ora19c/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ora19c)(PORT=1521)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=ora19c)(PORT=5500))(Security=(my_wallet_directory=/u01/app/oracle/admin/ora19c/xdb_wallet))(Presentation=HTTP)(Session=RAW))
Services Summary...
Service "ora19c" has 1 instance(s).
  Instance "ora19c", status READY, has 1 handler(s) for this service...
Service "ora19cXDB" has 1 instance(s).
  Instance "ora19c", status READY, has 1 handler(s) for this service...
The command completed successfully

정적 서비스 등록(Static Service Registration)

리스너에게 데이터베이스 정보를 구성해야 함

LISTENER =
  (DESCRIPTION_LIST =
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = TCP)(HOST = ora19c)(PORT = 1521))
      (ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))
    )
  )

SID_LIST_LISTENER =
  (SID_LIST =
    (SID_DESC =
      (SID_NAME = ora19c)
      (ORACLE_HOME = /u01/app/oracle/product/19.3.0/dbhome_1)
      (GLOBAL_DBNAME = ora19c)
    )
  )

[oracle@ora19c ~]$ cd $ORACLE_HOME/network/admin

[oracle@ora19c admin]$ ls
listener.ora  samples  shrept.lst  tnsnames.ora

[oracle@ora19c admin]$ cat listener.ora
# listener.ora Network Configuration File: /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
# Generated by Oracle configuration tools.

LISTENER =
  (DESCRIPTION_LIST =
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = TCP)(HOST = ora19c)(PORT = 1521))
      (ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))
    )
  )

# 기존 리스너 파일 백업
[oracle@ora19c admin]$ mv listener.ora listener.bak

# 정적 리스너 파일 생성
[oracle@ora19c admin]$ vi listener.ora
[oracle@ora19c admin]$ cat listener.ora
LISTENER =
  (DESCRIPTION_LIST =
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = TCP)(HOST = ora19c)(PORT = 1521))
      (ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))
    )
  )

SID_LIST_LISTENER =
  (SID_LIST =
    (SID_DESC =
      (SID_NAME = ora19c)
      (ORACLE_HOME = /u01/app/oracle/product/19.3.0/dbhome_1)
      (GLOBAL_DBNAME = ora19c)
    )
  )
[oracle@ora19c admin]$ ls
listener.bak  listener.ora  samples  shrept.lst  tnsnames.ora


# 리스너 중지
[oracle@ora19c admin]$ lsnrctl stop

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 12-DEC-2025 20:15:11

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ora19c)(PORT=1521)))
TNS-12545: Connect failed because target host or object does not exist
 TNS-12560: TNS:protocol adapter error
  TNS-00515: Connect failed because target host or object does not exist
   Linux Error: 2: No such file or directory
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=EXTPROC1521)))
The command completed successfully

# 리스너 상태 조회 : 중지
[oracle@ora19c admin]$ lsnrctl status

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 12-DEC-2025 20:15:18

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ora19c)(PORT=1521)))
TNS-12545: Connect failed because target host or object does not exist
 TNS-12560: TNS:protocol adapter error
  TNS-00515: Connect failed because target host or object does not exist
   Linux Error: 2: No such file or directory
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=EXTPROC1521)))
TNS-12541: TNS:no listener
 TNS-12560: TNS:protocol adapter error
  TNS-00511: No listener
   Linux Error: 2: No such file or directory

# 리스너 시작 : DB 바로 등록됨
[oracle@ora19c admin]$ lsnrctl start

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 12-DEC-2025 20:19:29

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Starting /u01/app/oracle/product/19.3.0/dbhome_1/bin/tnslsnr: please wait...

TNSLSNR for Linux: Version 19.0.0.0.0 - Production
System parameter file is /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
Log messages written to /u01/app/oracle/diag/tnslsnr/ora19c/listener/alert/log.xml
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ora19c)(PORT=1521)))
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ora19c)(PORT=1521)))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date                12-DEC-2025 20:19:29
Uptime                    0 days 0 hr. 0 min. 0 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
Listener Log File         /u01/app/oracle/diag/tnslsnr/ora19c/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ora19c)(PORT=1521)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
Services Summary...
Service "ora19c" has 1 instance(s).
  Instance "ora19c", status UNKNOWN, has 1 handler(s) for this service...
The command completed successfully

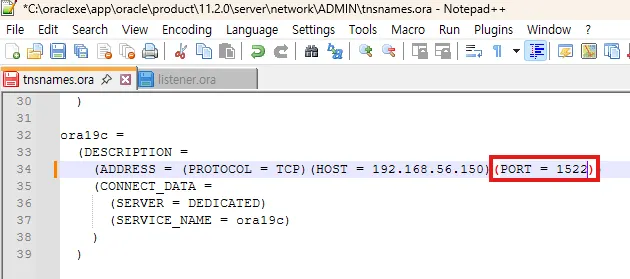

포트 번호 변경

정적 리스너

# 포트 번호 변경 1521 -> 1522
[oracle@ora19c admin]$ cat listener.ora
LISTENER =
  (DESCRIPTION_LIST =
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = TCP)(HOST = ora19c)(PORT = 1521))
      (ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))
    )
  )

SID_LIST_LISTENER =
  (SID_LIST =
    (SID_DESC =
      (SID_NAME = ora19c)
      (ORACLE_HOME = /u01/app/oracle/product/19.3.0/dbhome_1)
      (GLOBAL_DBNAME = ora19c)
    )
  )
[oracle@ora19c admin]$ vi listener.ora
[oracle@ora19c admin]$ cat listener.ora
LISTENER =
  (DESCRIPTION_LIST =
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = TCP)(HOST = ora19c)(PORT = 1522))
      (ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))
    )
  )

SID_LIST_LISTENER =
  (SID_LIST =
    (SID_DESC =
      (SID_NAME = ora19c)
      (ORACLE_HOME = /u01/app/oracle/product/19.3.0/dbhome_1)
      (GLOBAL_DBNAME = ora19c)
    )
  )

# 리스너 재시작
[oracle@ora19c admin]$ lsnrctl stop

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 12-DEC-2025 20:34:00

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ora19c)(PORT=1522)))
TNS-12541: TNS:no listener
 TNS-12560: TNS:protocol adapter error
  TNS-00511: No listener
   Linux Error: 111: Connection refused
Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=EXTPROC1521)))
The command completed successfully

[oracle@ora19c admin]$ lsnrctl start

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 12-DEC-2025 20:34:19

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Starting /u01/app/oracle/product/19.3.0/dbhome_1/bin/tnslsnr: please wait...

TNSLSNR for Linux: Version 19.0.0.0.0 - Production
System parameter file is /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
Log messages written to /u01/app/oracle/diag/tnslsnr/ora19c/listener/alert/log.xml
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ora19c)(PORT=1522)))
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ora19c)(PORT=1522)))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date                12-DEC-2025 20:34:19
Uptime                    0 days 0 hr. 0 min. 0 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
Listener Log File         /u01/app/oracle/diag/tnslsnr/ora19c/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ora19c)(PORT=1522)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
Services Summary...
Service "ora19c" has 1 instance(s).
  Instance "ora19c", status UNKNOWN, has 1 handler(s) for this service...
The command completed successfully

Easy Connection

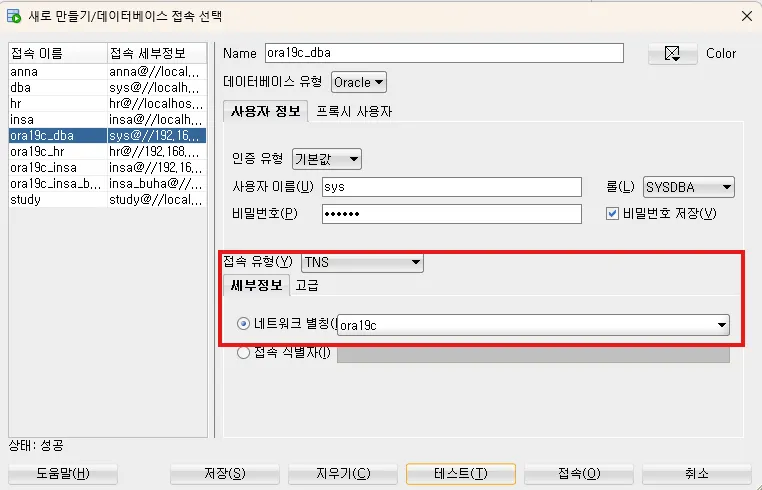

Local Naming

동적 리스너

# 리스너 중지
[oracle@ora19c admin]$ lsnrctl stop

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 12-DEC-2025 20:47:00

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ora19c)(PORT=1522)))
The command completed successfully

# 동적 리스너로 변경
[oracle@ora19c admin]$ ls
listener.bak  listener.ora  samples  shrept.lst  tnsnames.ora
[oracle@ora19c admin]$ mv listener.ora listener.txt
[oracle@ora19c admin]$ mv listener.bak listener.ora
[oracle@ora19c admin]$ ls
listener.ora  listener.txt  samples  shrept.lst  tnsnames.ora
[oracle@ora19c admin]$ cat listener.ora
# listener.ora Network Configuration File: /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
# Generated by Oracle configuration tools.

LISTENER =
  (DESCRIPTION_LIST =
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = TCP)(HOST = ora19c)(PORT = 1521))
      (ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))
    )
  )

# 포트 번호 변경 1521 -> 1522
[oracle@ora19c admin]$ vi listener.ora
[oracle@ora19c admin]$ cat listener.ora
# listener.ora Network Configuration File: /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
# Generated by Oracle configuration tools.

LISTENER =
  (DESCRIPTION_LIST =
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = TCP)(HOST = ora19c)(PORT = 1522))
      (ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))
    )
  )

# 리스너 재시작
[oracle@ora19c admin]$ lsnrctl start

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 12-DEC-2025 20:49:53

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Starting /u01/app/oracle/product/19.3.0/dbhome_1/bin/tnslsnr: please wait...

TNSLSNR for Linux: Version 19.0.0.0.0 - Production
System parameter file is /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
Log messages written to /u01/app/oracle/diag/tnslsnr/ora19c/listener/alert/log.xml
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ora19c)(PORT=1522)))
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ora19c)(PORT=1522)))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date                12-DEC-2025 20:49:53
Uptime                    0 days 0 hr. 0 min. 0 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
Listener Log File         /u01/app/oracle/diag/tnslsnr/ora19c/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ora19c)(PORT=1522)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
The listener supports no services
The command completed successfully

# 리스너 정보 강제 등록
[oracle@ora19c admin]$ sqlplus / as sysdba

SQL*Plus: Release 19.0.0.0.0 - Production on Fri Dec 12 20:50:10 2025
Version 19.3.0.0.0

Copyright (c) 1982, 2019, Oracle.  All rights reserved.

Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.3.0.0.0

SYS@ora19c> alter system register;

System altered.

SYS@ora19c> exit
Disconnected from Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.3.0.0.0

# 여전히 등록안됨
[oracle@ora19c admin]$ lsnrctl status

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 12-DEC-2025 20:50:27

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ora19c)(PORT=1522)))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date                12-DEC-2025 20:49:53
Uptime                    0 days 0 hr. 0 min. 33 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
Listener Log File         /u01/app/oracle/diag/tnslsnr/ora19c/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ora19c)(PORT=1522)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
The listener supports no services
The command completed successfully

로컬 리스너가 가리키는 tns의 포트 번호도 맞춰서 변경해줘야 함

# local_listener 파라미터 조회
SYS@ora19c> show parameter local_listener

NAME                                 TYPE        VALUE
------------------------------------ ----------- ------------------------------
local_listener                       string      LISTENER_ORA19C

SYS@ora19c> !
[oracle@ora19c ~]$ cd $ORACLE_HOME/network/admin
[oracle@ora19c admin]$ ls
listener.ora  listener.txt  samples  shrept.lst  tnsnames.ora
[oracle@ora19c admin]$ cat tnsnames.ora
# tnsnames.ora Network Configuration File: /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/tnsnames.ora
# Generated by Oracle configuration tools.

ORA19C =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = ora19c)(PORT = 1521))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = ora19c)
    )
  )

LISTENER_ORA19C =
  (ADDRESS = (PROTOCOL = TCP)(HOST = ora19c)(PORT = 1521))

# LISTENER_ORA19C 포트번호 1522로 변경
[oracle@ora19c admin]$ vi tnsnames.ora
[oracle@ora19c admin]$ cat tnsnames.ora
# tnsnames.ora Network Configuration File: /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/tnsnames.ora
# Generated by Oracle configuration tools.

ORA19C =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = ora19c)(PORT = 1521))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = ora19c)
    )
  )

LISTENER_ORA19C =
  (ADDRESS = (PROTOCOL = TCP)(HOST = ora19c)(PORT = 1522))

[oracle@ora19c admin]$ exit
exit

# local_listener 적용
SYS@ora19c> alter system set local_listener = LISTENER_ORA19C;

# 리스너 재시작
[oracle@ora19c admin]$ lsnrctl stop

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 12-DEC-2025 20:58:31

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ora19c)(PORT=1522)))
The command completed successfully

[oracle@ora19c admin]$ lsnrctl start

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 12-DEC-2025 20:58:38

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Starting /u01/app/oracle/product/19.3.0/dbhome_1/bin/tnslsnr: please wait...

TNSLSNR for Linux: Version 19.0.0.0.0 - Production
System parameter file is /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
Log messages written to /u01/app/oracle/diag/tnslsnr/ora19c/listener/alert/log.xml
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ora19c)(PORT=1522)))
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ora19c)(PORT=1522)))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date                12-DEC-2025 20:58:38
Uptime                    0 days 0 hr. 0 min. 0 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
Listener Log File         /u01/app/oracle/diag/tnslsnr/ora19c/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ora19c)(PORT=1522)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
The listener supports no services
The command completed successfully

# 리스너 정보 조회 -> db 정보 등록됨
[oracle@ora19c admin]$ lsnrctl status

LSNRCTL for Linux: Version 19.0.0.0.0 - Production on 12-DEC-2025 13:43:44

Copyright (c) 1991, 2019, Oracle.  All rights reserved.

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=ora19c)(PORT=1522)))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date                12-DEC-2025 13:41:19
Uptime                    0 days 0 hr. 2 min. 25 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/listener.ora
Listener Log File         /u01/app/oracle/diag/tnslsnr/ora19c/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=ora19c)(PORT=1522)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=ora19c)(PORT=5500))(Security=(my_wallet_directory=/u01/app/oracle/admin/ora19c/xdb_wallet))(Presentation=HTTP)(Session=RAW))
Services Summary...
Service "ora19c" has 1 instance(s).
  Instance "ora19c", status READY, has 1 handler(s) for this service...
Service "ora19cXDB" has 1 instance(s).
  Instance "ora19c", status READY, has 1 handler(s) for this service...
The command completed successfully

로컬 리스너 직접 지정

SYS@ora19c> show parameter local_listener

NAME                                 TYPE        VALUE
------------------------------------ ----------- ------------------------------
local_listener                       string      LISTENER_ORA19C

# local_listener를 tns명으로 지정하지 않고 직접 입력한 값으로 지정할 수 있음
SYS@ora19c> alter system set local_listener = '(ADDRESS = (PROTOCOL = TCP)(HOST = ora19c)(PORT = 1522))';

System altered.

SYS@ora19c> show parameter local_listener

NAME                                 TYPE        VALUE
------------------------------------ ----------- ------------------------------
local_listener                       string      (ADDRESS = (PROTOCOL = TCP)(HO
                                                 ST = ora19c)(PORT = 1522))

방화벽

방화벽 시작 및 활성화

# 방화벽 상태 조회 -> 꺼짐
[root@ora19c ~]# systemctl status firewalld
● firewalld.service - firewalld - dynamic firewall daemon
   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
   Active: inactive (dead)
     Docs: man:firewalld(1)

# 방화벽 시작
[root@ora19c ~]# systemctl start firewalld

# 방화벽 상태 조회 -> 켜졌지만 비활성화 상태
[root@ora19c ~]# systemctl status firewalld
● firewalld.service - firewalld - dynamic firewall daemon
   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
   Active: active (running) since Fri 2025-12-12 14:53:26 KST; 6s ago
     Docs: man:firewalld(1)
 Main PID: 9625 (firewalld)
    Tasks: 2
   CGroup: /system.slice/firewalld.service
           └─9625 /usr/bin/python2 -Es /usr/sbin/firewalld --nofork --nopid

Dec 12 14:53:25 ora19c systemd[1]: Starting firewalld - dynamic firewall daemon...
Dec 12 14:53:26 ora19c systemd[1]: Started firewalld - dynamic firewall daemon.
Dec 12 14:53:26 ora19c firewalld[9625]: WARNING: AllowZoneDrifting is enabled. This is considered an insecure... now.
Hint: Some lines were ellipsized, use -l to show in full.

# 방화벽 활성화
[root@ora19c ~]# systemctl enable firewalld
Created symlink from /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service to /usr/lib/systemd/system/firewalld.service.
Created symlink from /etc/systemd/system/multi-user.target.wants/firewalld.service to /usr/lib/systemd/system/firewalld.service.

# 방화벽 상태 조회
[root@ora19c ~]# systemctl status firewalld
● firewalld.service - firewalld - dynamic firewall daemon
   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; enabled; vendor preset: enabled)
   Active: active (running) since Fri 2025-12-12 14:53:26 KST; 1min 11s ago
     Docs: man:firewalld(1)
 Main PID: 9625 (firewalld)
   CGroup: /system.slice/firewalld.service
           └─9625 /usr/bin/python2 -Es /usr/sbin/firewalld --nofork --nopid

Dec 12 14:53:25 ora19c systemd[1]: Starting firewalld - dynamic firewall daemon...
Dec 12 14:53:26 ora19c systemd[1]: Started firewalld - dynamic firewall daemon.
Dec 12 14:53:26 ora19c firewalld[9625]: WARNING: AllowZoneDrifting is enabled. This is considered an insecure... now.
Hint: Some lines were ellipsized, use -l to show in full.

특정 포트만 방화벽 열기

# 클라이언트에서 접속 실패(방화벽에 막힘)
C:\Users\itwill>sqlplus insa/insa@ora19c:1521/ora19c

SQL*Plus: Release 11.2.0.2.0 Production on 금 12월 12 14:57:23 2025

Copyright (c) 1982, 2014, Oracle.  All rights reserved.

ERROR:
ORA-12154: TNS:could not resolve the connect identifier specified

Enter user-name:
C:\Users\itwill>sqlplus insa/insa@ora19c

SQL*Plus: Release 11.2.0.2.0 Production on 금 12월 12 14:57:56 2025

Copyright (c) 1982, 2014, Oracle.  All rights reserved.

ERROR:
ORA-12170: TNS:Connect timeout occurred

Enter user-name: ^C
C:\Users\itwill>

# 방화벽에 열려있는 포트 번호 확인
[root@ora19c ~]# firewall-cmd --list-all
public (active)
  target: default
  icmp-block-inversion: no
  interfaces: enp0s3 enp0s8
  sources:
  services: dhcpv6-client ssh
  ports:
  protocols:
  masquerade: no
  forward-ports:
  source-ports:
  icmp-blocks:
  rich rules:

# 방화벽에 등록되어 있는 포트 번호 리스트 확인
[root@ora19c ~]# firewall-cmd --list-ports

# 방화벽에 등록되어 있는 특정 포트 번호 확인
[root@ora19c ~]# firewall-cmd --query-port=1521/tcp
no

# 특정 포트 번호 등록
[root@ora19c ~]# firewall-cmd --add-port=1521/tcp --permanent
success

# 변경 사항 적용 X
[root@ora19c ~]# firewall-cmd --query-port=1521/tcp
no

# reload로 변경 사항 적용
[root@ora19c ~]# firewall-cmd --reload
success

[root@ora19c ~]# firewall-cmd --query-port=1521/tcp
yes

# 클라이언트 접속 성공
C:\Users\itwill>sqlplus insa/insa@ora19c

SQL*Plus: Release 11.2.0.2.0 Production on 금 12월 12 15:05:09 2025

Copyright (c) 1982, 2014, Oracle.  All rights reserved.

Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production

SQL>

방화벽에 등록한 포트 번호 삭제

# 방화벽에 등록한 포트 삭제
[root@ora19c ~]# firewall-cmd --remove-port=1521/tcp --permanent
success

# 변경 사항 적용 X
[root@ora19c ~]# firewall-cmd --query-port=1521/tcp
yes

# reload로 변경 사항 적용
[root@ora19c ~]# firewall-cmd --reload
success

[root@ora19c ~]# firewall-cmd --query-port=1521/tcp
no

방화벽 중지 및 비활성화

# 방화벽 중지
[root@ora19c ~]# systemctl stop firewalld

# 방화벽 비활성화
[root@ora19c ~]# systemctl disable firewalld
Removed symlink /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed symlink /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.

# 방화벽 상태 조회 : 중지 + 비활성화 상태
[root@ora19c ~]# systemctl status firewalld
● firewalld.service - firewalld - dynamic firewall daemon
   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
   Active: inactive (dead)
     Docs: man:firewalld(1)

Dec 12 14:53:25 ora19c systemd[1]: Starting firewalld - dynamic firewall daemon...
Dec 12 14:53:26 ora19c systemd[1]: Started firewalld - dynamic firewall daemon.
Dec 12 14:53:26 ora19c firewalld[9625]: WARNING: AllowZoneDrifting is enabled. This is considered an insecure... now.
Dec 12 15:03:41 ora19c firewalld[9625]: WARNING: AllowZoneDrifting is enabled. This is considered an insecure... now.
Dec 12 15:06:47 ora19c firewalld[9625]: WARNING: AllowZoneDrifting is enabled. This is considered an insecure... now.
Dec 12 15:09:49 ora19c systemd[1]: Stopping firewalld - dynamic firewall daemon...
Dec 12 15:09:49 ora19c systemd[1]: Stopped firewalld - dynamic firewall daemon.
Hint: Some lines were ellipsized, use -l to show in full.

DB Link

다른 데이터베이스의 객체에 대해서 액세스할 수 있는 객체

PUBLIC DB LINK

모든 유저가 사용할 수 있는 db link
CREATE PUBLIC DATABASE LINK 시스템 권한 필요

PUBLIC DB LINK 생성

클라이언트 tnsnames.ora에 원격 DB 정보가 구성되어 있어야 함

db link 생성

-- SYS에서 public db link 생성
create public database link ora19c_insa
connect to insa identified by insa
using 'ora19c';

select * from dba_db_links;

-- 일반 유저에서 사용 가능한 db link 조회(public이므로 모든 유저 사용 가능)
select * from all_db_links;

db link 사용

-- db link를 통해 원격 DB의 테이블 조회
select *
from insa.emp@ora19c_insa;

select e.employee_id, e.department_id, d.department_name
from insa.emp@ora19c_insa e, hr.departments d
where e.department_id = d.department_id;

PUBLIC DB LINK 삭제

drop public database link ora19c_insa;

PRIVATE DB LINK

소유자만 사용할 수 있는 db link
CREATE DATABASE LINK 권한 필요

PRIVATE DB LINK 생성

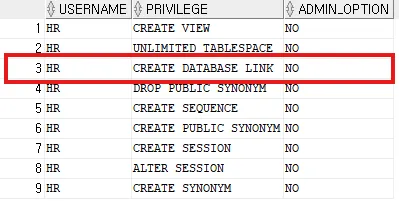

-- CREATE DATABASE LINK 권한이 있는지 확인
select * from user_sys_privs;

-- private db link 생성
create database link ora19c_insa
connect to insa identified by insa
using 'ora19c';

select * from user_db_links;

PRIVATE DB LINK 삭제

-- private db link 삭제
drop database link ora19c_insa;

ora19c(리눅스 가상 서버) → xe(윈도우 호스트 서버)

# 윈도우 호스트 서버의 ip 주소 조회
C:\Users\itwill>ipconfig

Windows IP 구성

이더넷 어댑터 이더넷:

   연결별 DNS 접미사. . . . :
   링크-로컬 IPv6 주소 . . . . : fe80::97e6:4ac6:9aea:30af%6
   IPv4 주소 . . . . . . . . . : 192.168.22.17
   서브넷 마스크 . . . . . . . : 255.255.0.0
   기본 게이트웨이 . . . . . . : 192.168.0.1
...

# 리눅스 가상 서버 tns에 윈도우 호스트 서버의 XE 정보 등록
[oracle@ora19c admin]$ vi tnsnames.ora
[oracle@ora19c admin]$ cat tnsnames.ora
# tnsnames.ora Network Configuration File: /u01/app/oracle/product/19.3.0/dbhome_1/network/admin/tnsnames.ora
# Generated by Oracle configuration tools.

ORA19C =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = ora19c)(PORT = 1521))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = ora19c)
    )
  )

XE =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.22.17)(PORT = 1521))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = XE)
    )
  )

# tns를 통해 윈도우 호스트 서버 접속 가능
[oracle@ora19c admin]$ sqlplus hr/hr@XE

SQL*Plus: Release 19.0.0.0.0 - Production on Fri Dec 12 16:45:10 2025
Version 19.3.0.0.0

Copyright (c) 1982, 2019, Oracle.  All rights reserved.

Connected to:
Oracle Database 11g Express Edition Release 11.2.0.2.0 - 64bit Production

HR@XE> exit
Disconnected from Oracle Database 11g Express Edition Release 11.2.0.2.0 - 64bit Production

# insa로 로그인
[oracle@ora19c admin]$ sqlplus insa/insa

SQL*Plus: Release 19.0.0.0.0 - Production on Fri Dec 12 16:46:08 2025
Version 19.3.0.0.0

Copyright (c) 1982, 2019, Oracle.  All rights reserved.

Last Successful login time: Fri Dec 12 2025 16:06:39 +09:00

Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.3.0.0.0

INSA@ora19c> select tname from tab;

TNAME
------------------------------
EMP

# 시스템 권한 조회 -> create database link 권한 없음
INSA@ora19c> select * from user_sys_privs;

USERNAME                       PRIVILEGE                      ADM COM INH
------------------------------ ------------------------------ --- --- ---
INSA                           SELECT ANY TABLE               NO  NO  NO
INSA                           CREATE TABLE                   YES NO  NO
INSA                           CREATE SESSION                 NO  NO  NO

# sys로 로그인
INSA@ora19c> conn sys/oracle as sysdba
Connected.

# insa에게 create database 권한 부여
SYS@ora19c> grant create database link to insa;

Grant succeeded.

SYS@ora19c> select * from dba_sys_privs where grantee = 'INSA';

GRANTEE                        PRIVILEGE                      ADM COM INH
------------------------------ ------------------------------ --- --- ---
INSA                           CREATE TABLE                   YES NO  NO
INSA                           CREATE DATABASE LINK           NO  NO  NO
INSA                           SELECT ANY TABLE               NO  NO  NO
INSA                           CREATE SESSION                 NO  NO  NO

# insa로 재접속
SYS@ora19c> conn insa/insa
Connected.

# private db link 생성
INSA@ora19c> create database link xe_hr connect to hr identified by hr using 'XE';

Database link created.

INSA@ora19c> select * from user_db_links;

DB_LINK                        USERNAME                       PASSWORD                       HOST                       CREATED   HID SHA VAL INT
------------------------------ ------------------------------ ------------------------------ ------------------------------ --------- --- --- --- ---
XE_HR                          HR                                                            XE                         12-DEC-25 NO  NO  YES NO

# db link를 통해 윈도우 호스트 서버의 테이블 조회 가능
INSA@ora19c> select count(*) from hr.employees@xe_hr;

  COUNT(*)
----------
       107

# 윈도우 -> 리눅스 데이터 이관
INSA@ora19c> select count(*) from emp;

  COUNT(*)
----------
       107

INSA@ora19c> truncate table emp;

Table truncated.

INSA@ora19c> select count(*) from emp;

  COUNT(*)
----------
         0

INSA@ora19c> insert into insa.emp select * from hr.employees@xe_hr;

107 rows created.

INSA@ora19c> commit;

Commit complete.

INSA@ora19c> select count(*) from emp;

  COUNT(*)
----------
       107

# 윈도우 -> 리눅스 데이터 복제
INSA@ora19c> create table insa.loc as select * from hr.locations@xe_hr;

Table created.

INSA@ora19c> select count(*) from insa.loc;

  COUNT(*)
----------
        23

저작자표시 비영리 변경금지 (새창열림)

'Courses > 아이티윌 오라클 DBA 과정' 카테고리의 다른 글

251215 TIL (0)	2025.12.15
251211 TIL (0)	2025.12.11
251210 TIL (1)	2025.12.11
251209 TIL (0)	2025.12.09
251208 TIL (0)	2025.12.08

Joy's Devlog

Joy's Devlog

태그

최근글

댓글

공지사항

아카이브

Oracel Net 서비스(Cont.)

Listener

동적 서비스 등록(Dynamic Service Register)

정적 서비스 등록(Static Service Registration)

포트 번호 변경

정적 리스너

동적 리스너

방화벽

방화벽 시작 및 활성화

특정 포트만 방화벽 열기

방화벽에 등록한 포트 번호 삭제

방화벽 중지 및 비활성화

DB Link

PUBLIC DB LINK

PUBLIC DB LINK 생성

PUBLIC DB LINK 삭제

PRIVATE DB LINK

PRIVATE DB LINK 생성

PRIVATE DB LINK 삭제

ora19c(리눅스 가상 서버) → xe(윈도우 호스트 서버)

'Courses > 아이티윌 오라클 DBA 과정' 카테고리의 다른 글

관련글

티스토리툴바
